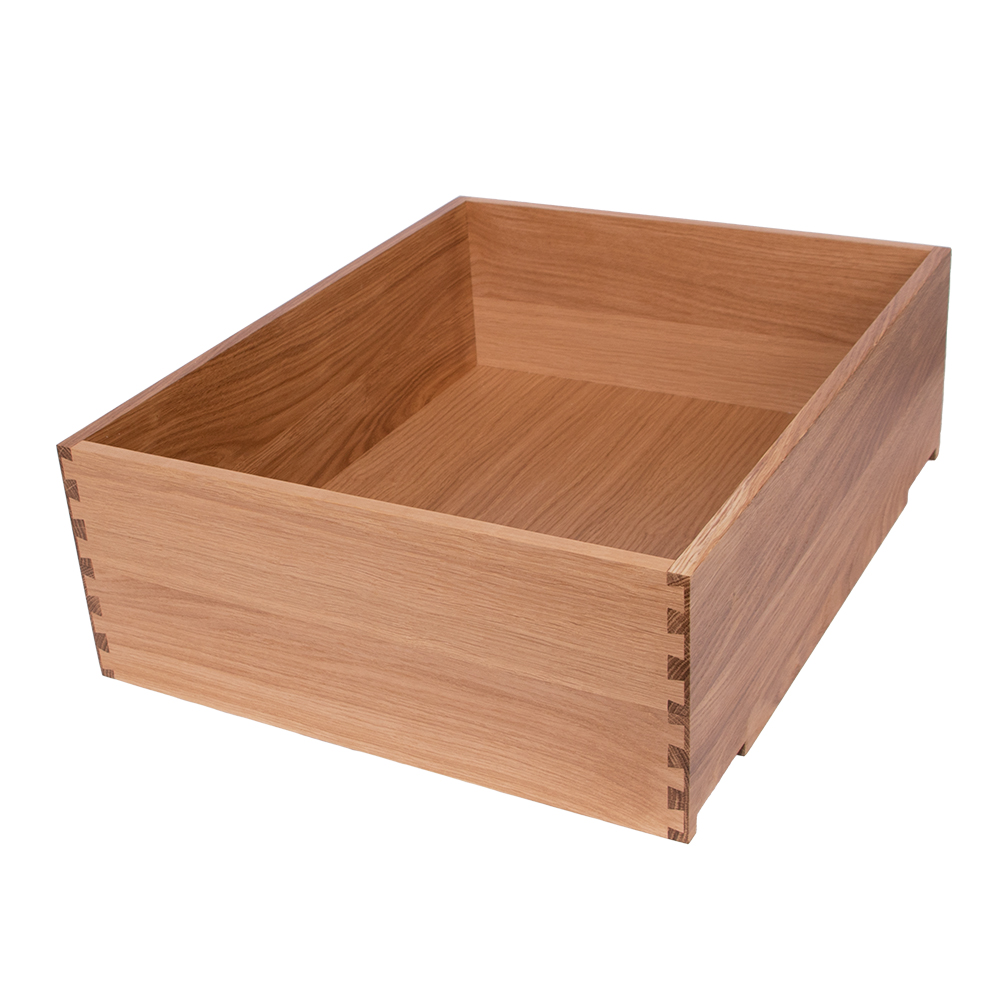

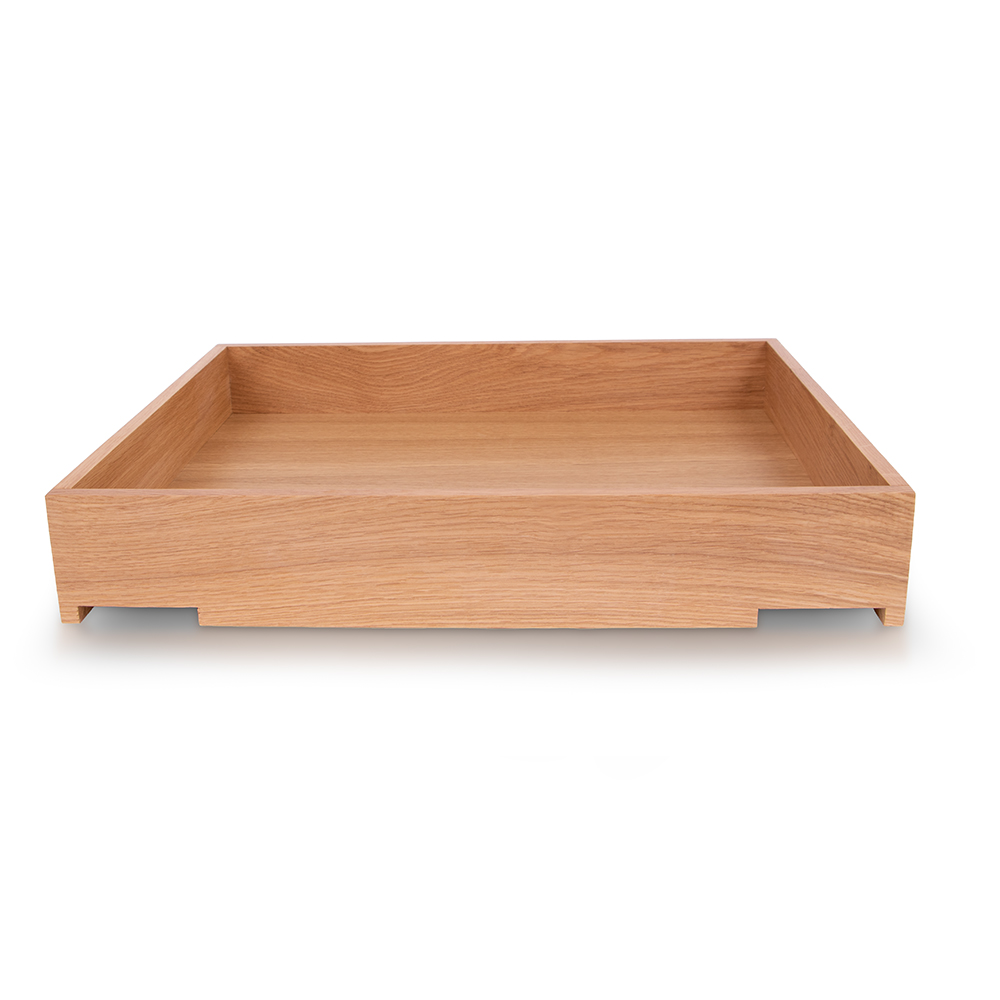

Standard sized oak dovetail drawers – Classic Swift

£32.00£66.38

Clear
SKU: N/A Category:

Product Description

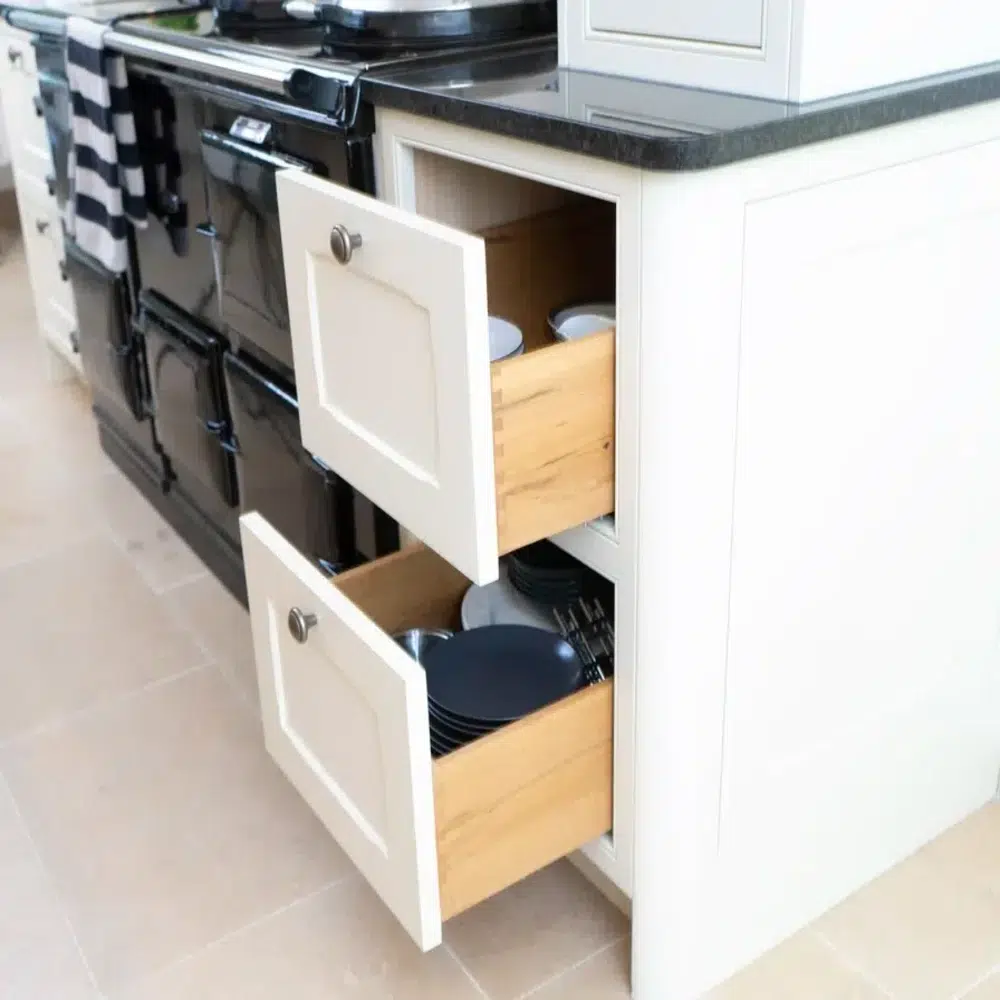

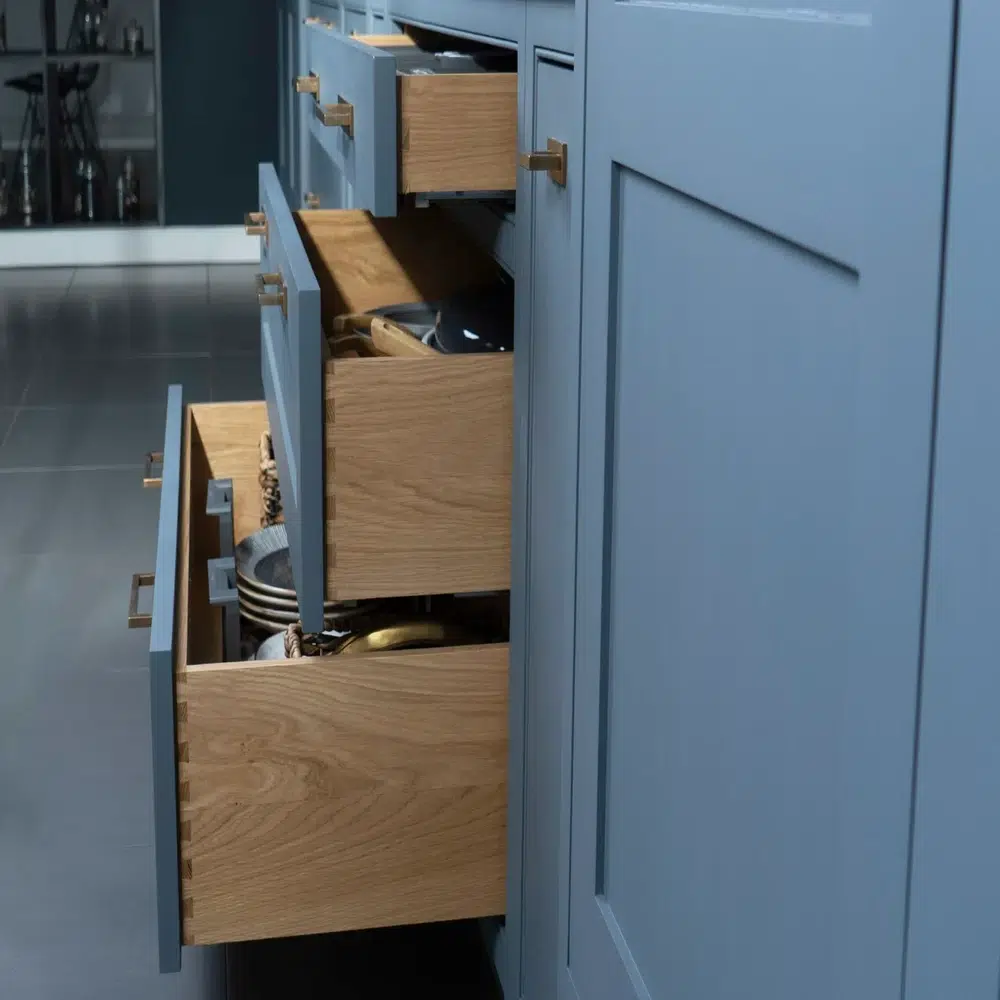

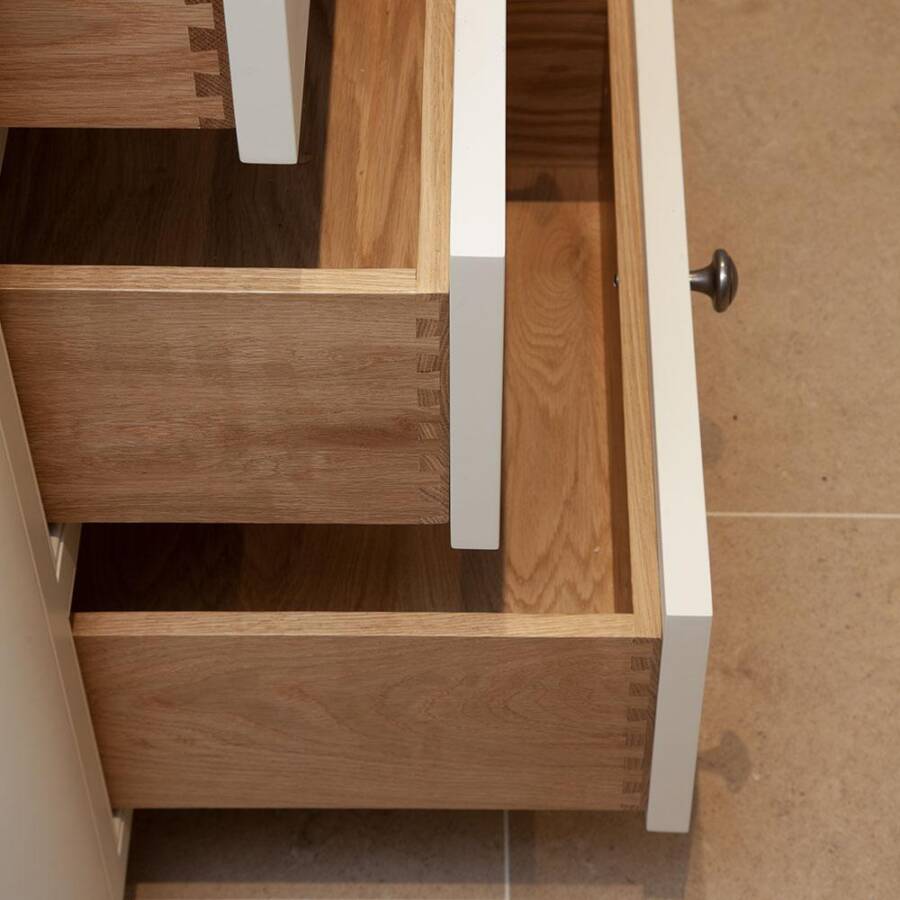

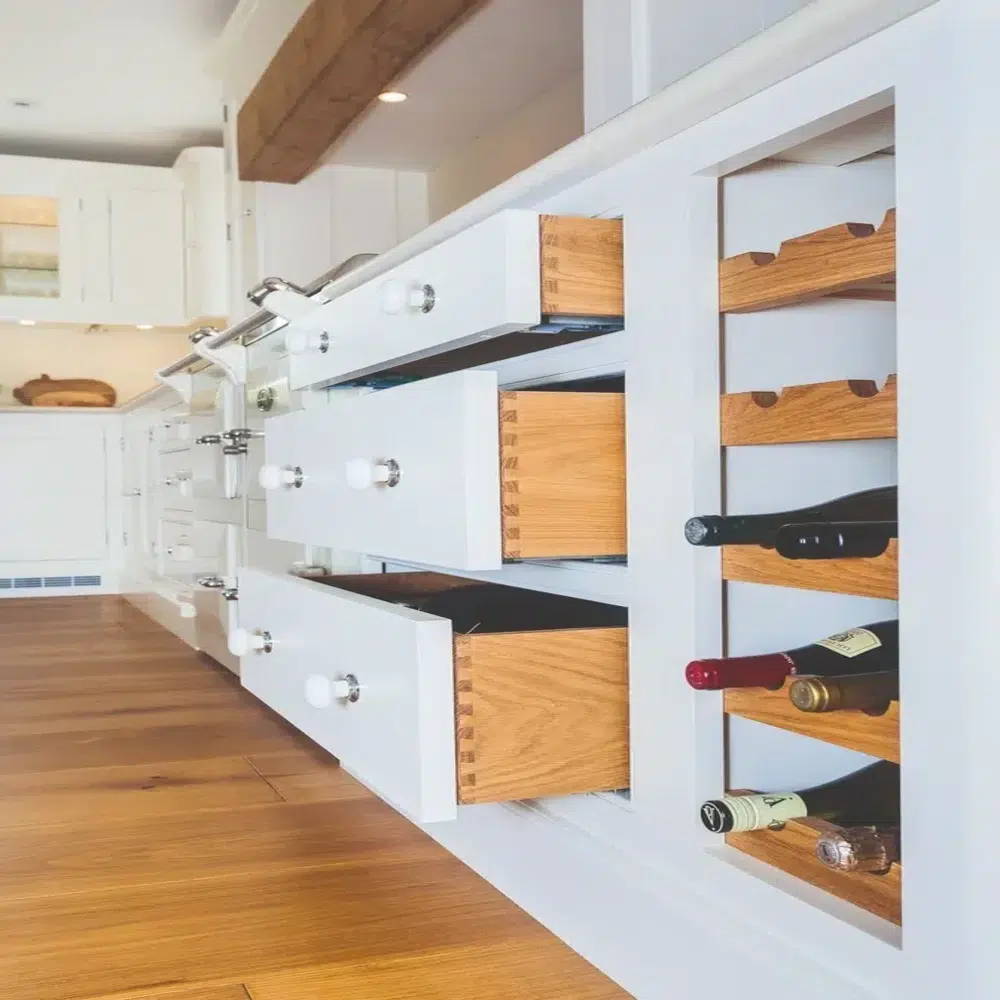

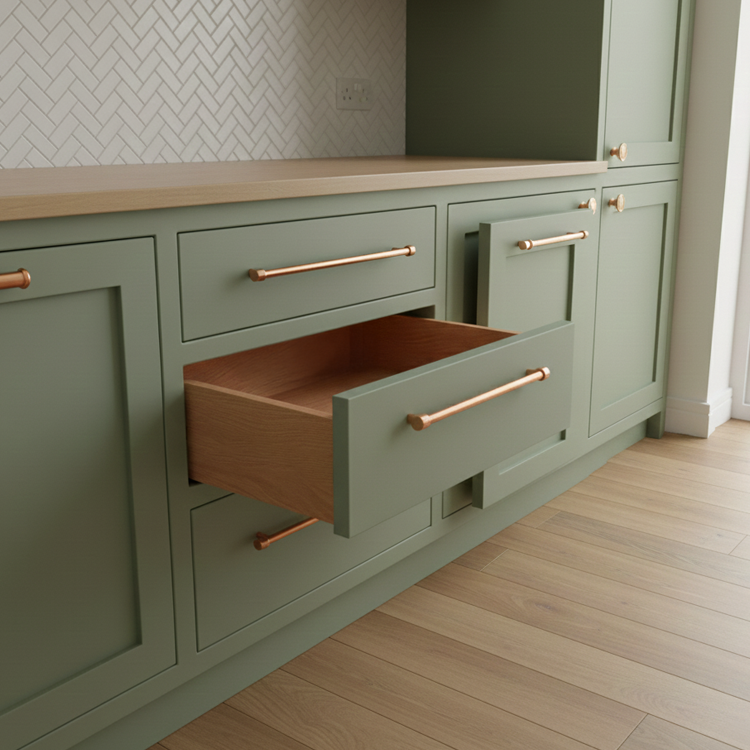

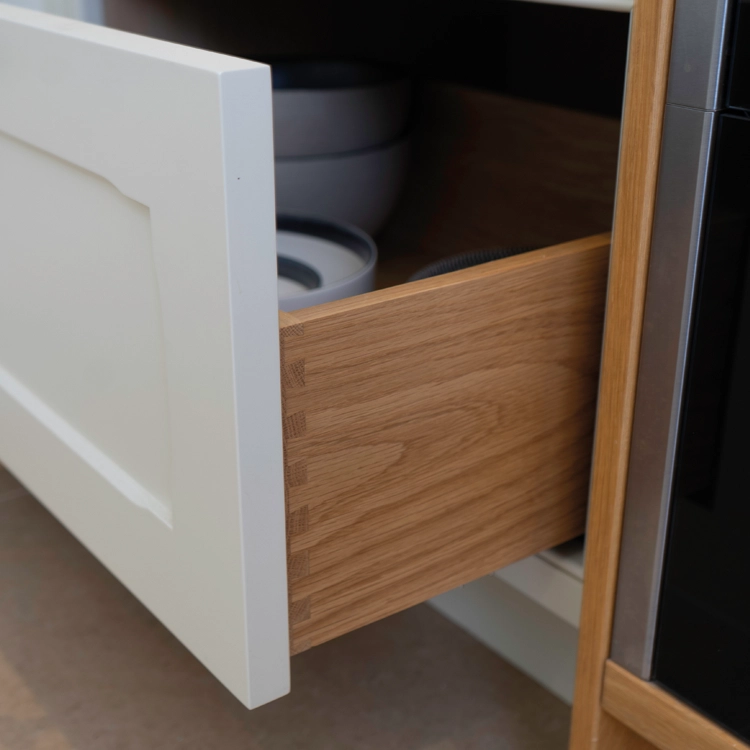

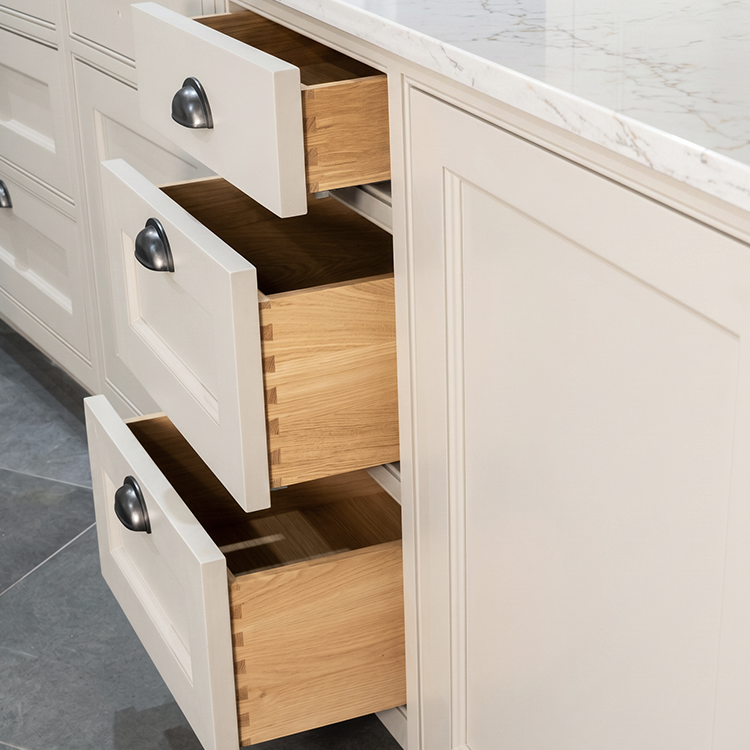

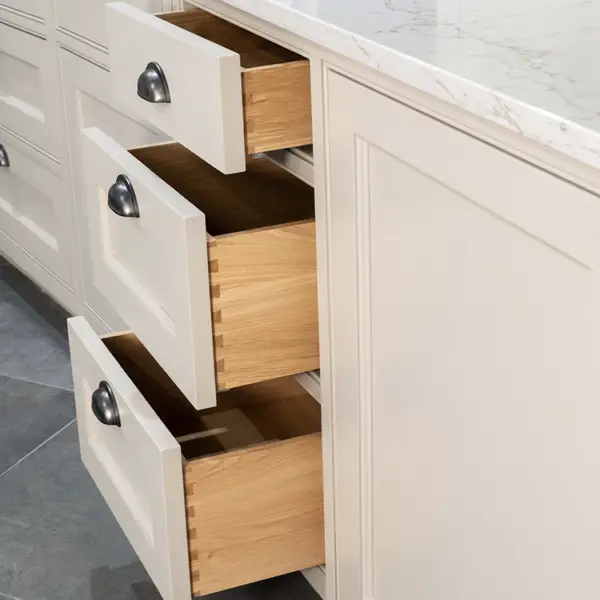

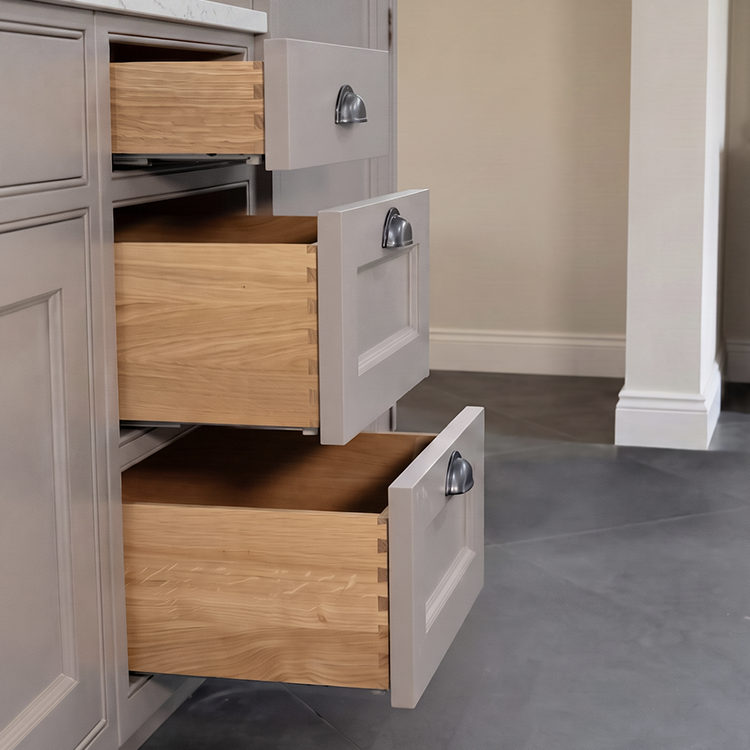

Clients often specify dovetail drawers because they like the warmth associated with wood products, especially in the “heart of the home”. When kitchens are made using standard size carcasses, both lay on and in-frame, Classic Swift dovetail drawers elevate any kitchen out of the ordinary and into the extraordinary.

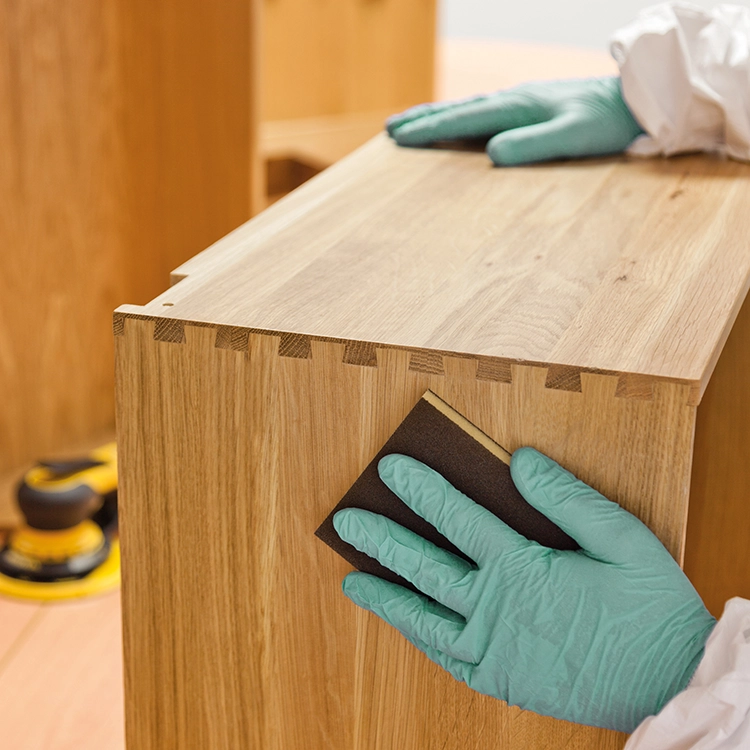

Dovetail drawers are time-consuming to manufacture yourself – outsourcing to Probox allows your skilled craftsmen to concentrate on more critical areas of furniture construction.
If your requirements cannot be fully covered by the Classic Swift range you can match with Classic Bespoke as necessary.

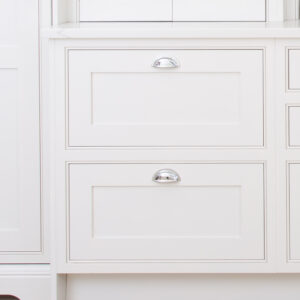

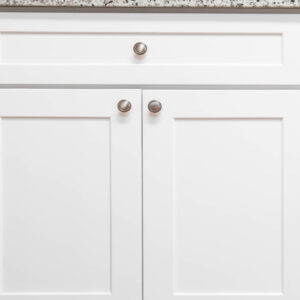

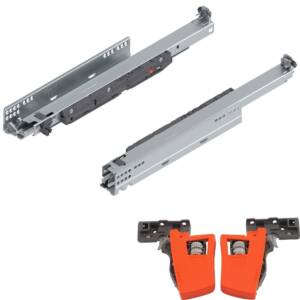

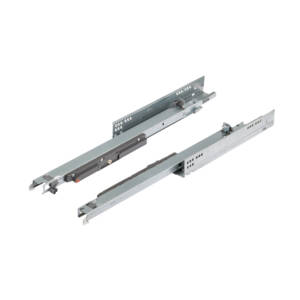

Classic Swift drawers are sized to suit the under-mount runners from Blum and Grass (not compatible with Hettich Quadro 4D V6), based on 18mm thick carcasses. For in-frame applications the sizes suit a 36mm wide front frame.

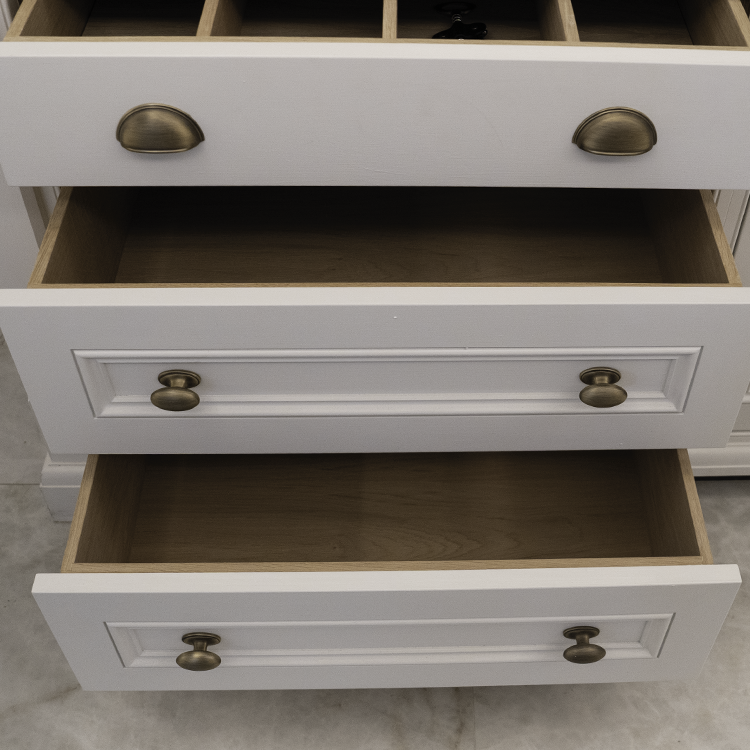

Classic Swift Drawer Size Range

Drawer type

Carcass size

Drawer ref

Drawer size

Width

Depth

Height

Dresser

500

PCOS500/270/90/L

448mm

260mm

90mm

600

PCOS600/270/90/L

548mm

Standard

300

PCOS300/440/90/L

248mm

440mm

90mm

400

PCOS400/440/90/L

348mm

450

PCOS450/440/90/L

398mm

500

PCOS500/440/90/L

448mm

600

PCOS600/440/90/L

548mm

700

PCOS700/440/90/L

648mm

800

PCOS800/440/90/L

748mm

900

PCOS900/440/90/L

848mm

1000

PCOS1000/440/90/L

948mm

1200

PCOS1200/440/90/L

1148mm

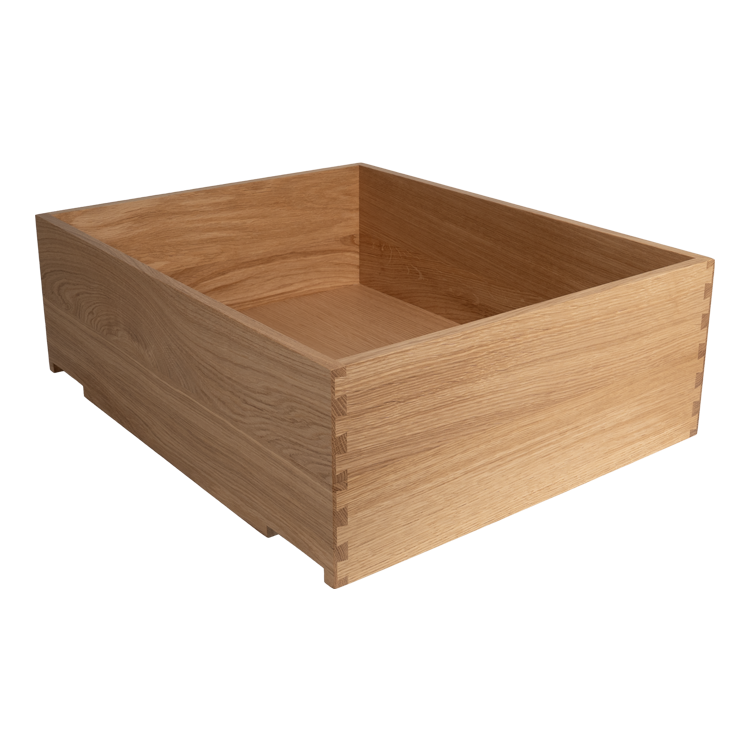

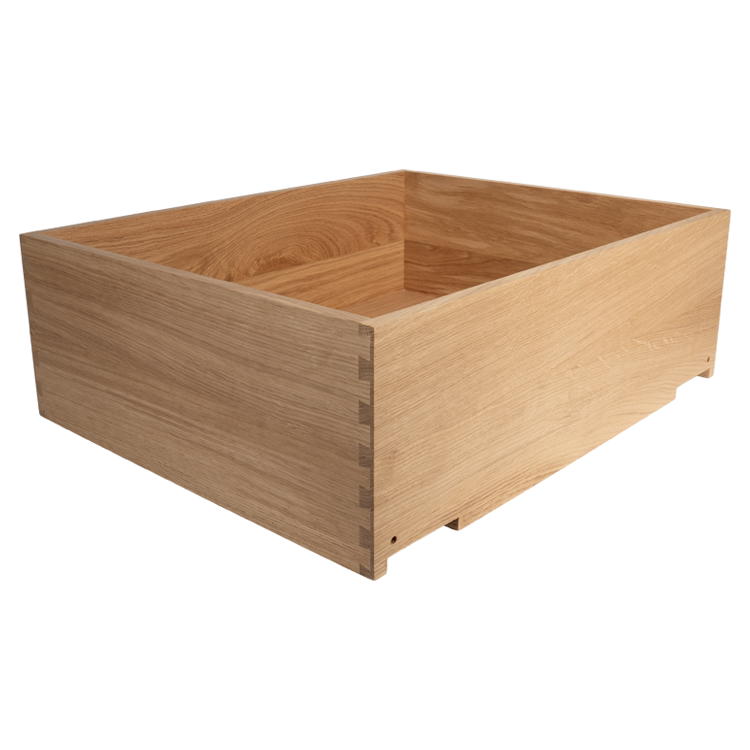

Pan

500

PCOS500/490/180/L

448mm

490mm

180mm

600

PCOS600/490/180/L

548mm

800

PCOS800/490/180/L

748mm

900

PCOS900/490/180/L

848mm

1000

PCOS1000/490/180/L

948mm

1200

PCOS1200/490/180/L

1148mm

Drawer type

Carcass size

Drawer ref

Drawer size

Width

Depth

Height

Dresser

500

PCOS500/270/90/IF

412mm

260mm

90mm

600

PCOS600/270/90/IF

512mm

Standard

300

PCOS300/440/90/IF

212mm

440mm

90mm

400

PCOS400/440/90/IF

312mm

450

PCOS450/440/90/IF

362mm

500

PCOS500/440/90/IF

412mm

600

PCOS600/440/90/IF

512mm

700

PCOS700/440/90/IF

612mm

800

PCOS800/440/90/IF

712mm

900

PCOS900/440/90/IF

812mm

1000

PCOS1000/440/90/IF

912mm

1200

PCOS1200/440/90/IF

1112mm

Pan

500

PCOS500/490/180/IF

412mm

490mm

180mm

600

PCOS600/490/180/IF

512mm

800

PCOS800/490/180/IF

712mm

900

PCOS900/490/180/IF

812mm

1000

PCOS1000/490/180/IF

912mm

1200

PCOS1200/490/180/IF

1112mm
